J-10 was designed by the Chengdu Aircraft Design Institute (CADI), a subordinate research institute of Chengdu Aircraft Industry Corporation (CAIC). Some of the designers and their roles are identified as follows; Xue Chishou (chief engineer, also deputy general manager of CAIC), Zhou Ziquan (chief test engineer, also deputy director of CADI). In a rather unusual agreement, the single seat version of the J-10 and the twin seat version of J-10 were designed by two different general designers; Song Wencong for the single seat version and Yang Wei for the twin seat version, also the general designer of the JF-17 light-weight fighter. Sang Jianhua of CADI was responsible for airframe design features that reduce radar signature.
Some US military analysts believed that J-10 could pose a serious challenge to F/A-18E in terms of maneuverabiliy.
Airframe and cockpit

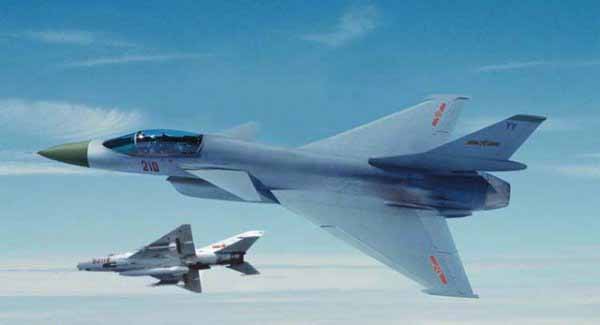

Constructed from metal alloys and composite materials for high strength and low weight, the airframe's aerodynamic layout adopts a "tail-less canard delta" wing configuration. A large delta wing is mid-mounted towards the rear of the fuselage, while a pair of canards (or foreplanes) are mounted higher up and towards the front of the fuselage, behind and below the cockpit. This configuration provides very high agility, especially at high speed. A large vertical tail is present on top of the fuselage and small ventral fins underneath the fuselage provide further stability.
A rectangular air intake is located underneath the fuselage, providing the air supply to the engine. Also under the fuselage and wings are 11 hardpoints, used for carrying various types of weaponry and drop-tanks containing extra fuel.
The retractable undercarriage comprises a steerable pair of nose-wheels underneath the air intake and two main gear wheels towards the rear of the fuselage.
The cockpit is covered by a two-piece bubble canopy providing 360 degrees of visual coverage for the pilot. The canopy lifts upwards to permit cockpit entry and exit. The Controls take the form of a conventional centre stick and a throttle stick located to the left of the pilot. These also incorporate "hands on throttle and stick" (HOTAS) controls. A zero-zero ejection seat is provided for the pilot, permitting safe ejection in an emergency even at zero altitude and zero speed.
Flight control system
Due to the J-10's aerodynamically unstable design, a digital quadruplex-redundant fly-by-wire flight control system aids the pilot in flying the aircraft. Chinese aircraft designer Yang Wei is claimed to be the chief designer of the fly-by-wire flight control system, although this is disputed by analyst Richard Fisher who credits Israeli consultants for developing the system. The flight control computer provides automatic flight coordination and keeps the aircraft from entering potentially dangerous situations such as unintentional slops or skids. This therefore frees the pilot to concentrate on his intended tasks during combat.
Flight instrumentation
Information is provided visually to the pilot via three liquid crystal (LCD) Multi-function displays (MFD) in the cockpit. Chief designer of the flight instrumentation panel was Zhou Han (unrelated to the chief test engineer), who was in charge of both the CRT display design at the early stages of development and the later LCD design that is currently adopted by J-10 in service.
The LCD display panel entered service shortly after 2000. The LCD displays and earlier CRT displays for J-10 (and that of WZ-10, J-11 and JH-7) are manufactured by the Suzhou Long Wind Machinery Plant, later reorganized as AVIC Radar and Avionics Equipment Research Institute.
In addition to the flight instrumentation, a Chinese holographic head-up display (HUD) is also present. The HUD shows important flight and combat related information such as targeting cues. It can also be used as a radar scope, a feature believed to be inspired by the HUDs of Russian aircraft, that allows the pilot to keep his eyes focused at infinity while working with his radar. Monochrome images from electro-optical avionics pods (FLIR and targeting pods) can also be displayed on the HUD. The HUD was designed to overcome issues with the HUDs of Russian fighters, which experienced significant fogging problems when deployed in humid and tropical zones of China, as they were originally designed for deployment in arid Arctic/sub-Arctic zones. The modular design of the HUD system and use of the MIL-STD-1553B databus architecture allows HUDs of Western origin to be integrated if desired by the user.
Electronic warfare
A comprehensive internal electronic counter-measures (ECM) suite is likely to be present, which can be supplemented by active jammer pods such as the BM/KG300G carried externally on the aircraft's hardpoints. Additionally, the KZ900 signals intelligence (SIGINT) pod can be carried for reconnaissance missions.
Infra-Red Search and Track
A Chinese infra-red search and track (IRST) system developed by the Sichuan Changhong Electric Appliance Corporation, the Type Hongguang-I (Rainbow Light-I) Electro-Optical Radar, is integrated with the J-10. It is a third generation optronics system utilising a HgCdTe focal array with imaging infra-red (ImIR) capability. Receiving its certification on 3 March 2005 and subsequently entering service with the PLAAF, the system was revealed to the public one year later at a conference on the Sichuan province of China, during which the system was demonstrated to visiting officials. Based on the limited information released, Type Hongguang-I has a maximum range of 75 km.
Although the Type Hongguang-I was designed to be lighter and more compact than similar Russian systems so that it could be fitted in the nose of J-10 while leaving enough space for a suitable radar, the current production model J-10 does not have enough space and must carry a podded version externally on one of the aircraft's hardpoints. However, recently released images show a modified variant of the J-10 with what is believed to be an IRST device fitted to the upper starboard side of the nose (see Variants). Type Hongguang-I is also designed to be compatible with China's Shenyang J-11, Shenyang J-8 and Xian JH-7 combat aircraft, as well as the Xian H-6 bomber and Sino-Pakistani JF-17 light-weight fighter.
Radar and targeting
On June 14, it was announced by Chinese state media that a version of J-10 has been equipped with a phased array radar.
According to Chengdu Aircraft Industry Corporation officials the J-10 uses a multi-mode fire-control radar designed in China. The radar has a mechanically scanned planar array antenna and is capable of tracking 10 targets. Of the 10 targets tracked, 2 can be engaged simultaneously with semi-active radar homing missiles or 4 can be engaged with active radar homing missiles.
The radar is believed to be designed by the Nanjing Research Institute of Electronic Technology (NRIET), designated KLJ-10 and a smaller variant is claimed to be installed on the JF-17 light-weight fighter. Believed to be based on technologies from Russia, Israel or a combination of both, the radar should be comparable to Western fighter radar designs of the 1990s. It may also be replaced by more advanced radars of other origin on export versions of the J-10. The Italian FIAR (now SELEX Galileo) Grifo 2000/16, has been offered to the Pakistan Air Force for installation on the J-10, should the PAF induct the aircraft.
In Chinese military technology related exhibitions, various helmet-mounted display (HMD) systems developed by Chinese organisations have been shown. It is believed that the J-10 is integrated with such a system to assist the pilot in targeting enemy aircraft. The J-10 has also been featured in photos and models carrying the FILAT (Forward-looking Infra-red Laser Attack Targeting) pod for laser designation of targets and the Blue Sky navigation / forward looking infra-red (FLIR) pod for low visibility, low altitude flights.
Propulsion
The J-10 is powered by a single Russian Lyulka-Saturn AL-31FN turbofan engine giving a maximum static power output of 11,700 kgf. The most significant difference between the AL-31FN and the AL-31F is the arrangement of certain parts and mechanisms due to spacial limitations of the engine bay in the J-10. The AL-31F is designed for a twin engine aircraft such as the Su-27. For the J-10's AL-31FN variant, protruding parts of the engine such as the gearbox and pump are mounted opposite to that of AL-31F.
The AL-31FN was initially expected to be replaced by a domestic powerplant developed and manufactured in China, the WS-10A (WoShan-10A) Taihang turbofan, giving a thrust of 129 kN (13,200 kgf or 29,101 lbf); however, the PLAAF delayed integration of the WS-10 onto the aircraft given development difficulties with the engine.
Russia has offered to provide China with a version of the AL-31FN that provides 12,500 kgf thrust and a 2,000-hour service life.
Weaponry and external loads
The aircraft's internal armament consists of a 23 mm twin-barrel cannon, located underneath the port side of the intake. Other weaponry and equipment is mounted externally on 11 hardpoints, to which 6,000 kg (13,228 lb) of weaponry such as missiles and bombs, drop-tanks containing fuel and other equipment such as avionics pods can be attached.
Air-to-air missiles deployed may include short range air-to-air missiles such as the PL-8 and PL-9, medium-range radar-guided air-to-air missiles such as the PL-11 and PL-12, unguided and precision guided munitions such as laser-guided bombs, anti-ship missiles such as the YJ-9K and anti-radiation missiles such as the PJ-9.
General characteristics
- Crew: 1 (basic), 2 (trainer variant)
- Length: 16.43 m (53 ft 10 in)
- Wingspan: 9.75 m (31 ft 11 in)
- Height: 4.78 m (15.7 ft)
- Wing area: 39 m² (419.8 ft²)
- Empty weight: 9,750 kg (21,495 lb)
- Loaded weight: 14,876 kg (32,797 lb)
- Useful load: 4,500 kg (9,920 lb)
- Max takeoff weight: 19,277 kg (42,500 lb)
- Powerplant: 1 × Saturn-Lyulka AL-31FN or WS-10A Taihang turbofan
- Dry thrust: 79.43 kN / 89.17 kN (17,860 lbf / 20,050 lbf)
- Thrust with afterburner: 122.5 kN / 132 kN (27,557 lbf / 29,101 lbf)
Performance
- Maximum speed: Mach 2.2 at altitude, Mach 1.2 at sea level
- g-limits: +9/-3 g (+88/-29 m/s², +290/-97 ft/s²)
- Combat radius: 1600 km with in-flight refueling
1100 km without in flight refueling - Ferry range: 3200 km
- Service ceiling: 20,300 m (66,601 ft)
- Wing loading: 335 kg/m² (69 lb/ft²)
- Thrust/weight: 0.98 (with AL-31); 1.03 (with WS-10A)
Armament
- Guns: 1× 23mm twin-barrel cannon
- Hardpoints: 11 in total (6× under-wing, 5× under-fuselage) with a capacity of 6,000 kg (13,228 lb) external fuel and ordnance
- Rockets: 90 mm unguided rocket pods
- Missiles:
- Air-to-air missiles: PL-8, PL-9, PL-11, PL-12
- Air-to-surface missiles: PJ-9, YJ-9K
- Bombs: laser-guided bombs (LT-2), glide bombs (LS-6) and unguided bombs
- Others:
- Up to 3 external fuel drop-tanks (1× under-fuselage, 2× under-wing) for extended range and loitering time
Avionics
- Unnamed phased array radar
- NRIET KLJ-10 multi-mode fire-control radar
- Externally-mounted avionics pods:
- Type Hongguang-I infra-red search and track pod
- BM/KG300G self-protection jamming pod
- KZ900 electronic reconnaissance pod
- Blue Sky navigation/attack pod
- FILAT (Forward-looking Infra-red Laser Attack Targeting) pod
